Salire® S3
Salire® S45
Salire® 100 - GW
Salire® 100 - SG
Salire® 100 - MB
Salire® 100 - DB
Salire® 100 - ZC
Key Features
Manual chain roller system
- Stainless Steel Bracket – Made in Germany
- Powerful in a slim 3”x3” footprint
- Smooth and effortless operation
- Durable with lifetime warranty
- Easy installation with built-in 1/4” levelling adjustment
- Minimal edge clearance, less than 3/4” light gap
- Guide Wire, Side Channels and Fascia accessories
- Smooth brake system for smaller shades
- Strong brake system for larger shades. Can cover up to 10’x10’ opening
- Universal Mounting: Wall and Ceiling
- 1. Mounting brackets
- 2. Bracket end cap
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Fabric
- 10. Optional Fascia
- 11. Fascia Support
- 12. Ball Chain
Key Features
Roller system with guide wire
- The Salire® 45 roller blind system is manually operated with a chain.
- It features a slide-lock with heavier holding weights and antifray elements for enhanced performance.
- The improved chain location allows for quick and easy on-site adjustments.
- A locking plug inside the clutch ensures continued performance, even for larger shades.
- The system uses a 5mm grooved aluminum tube, with fabrics held by locking tape.
- Components are made of durable materials like glass-filled nylon, acetal, and mild steel, with options for top or face fixing.

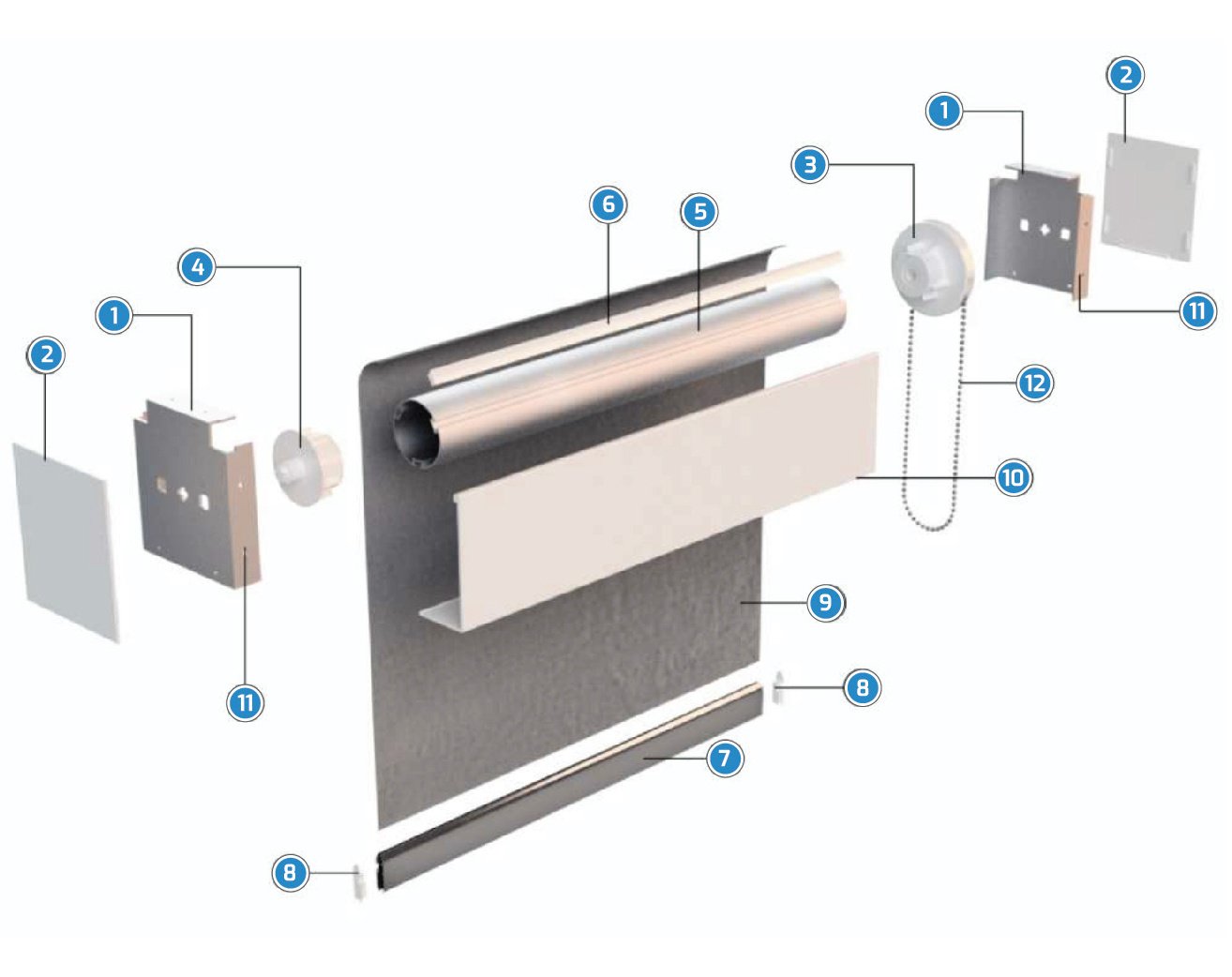

- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Guide wire
- 13. Holder guide wire
- 14. Ball chain
Key Features
Multi band roller system
- 4:1 ratio chain mechanism for easy operation on large blinds
- The guide wire will stabilize the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)Only with exposed bottom bar)

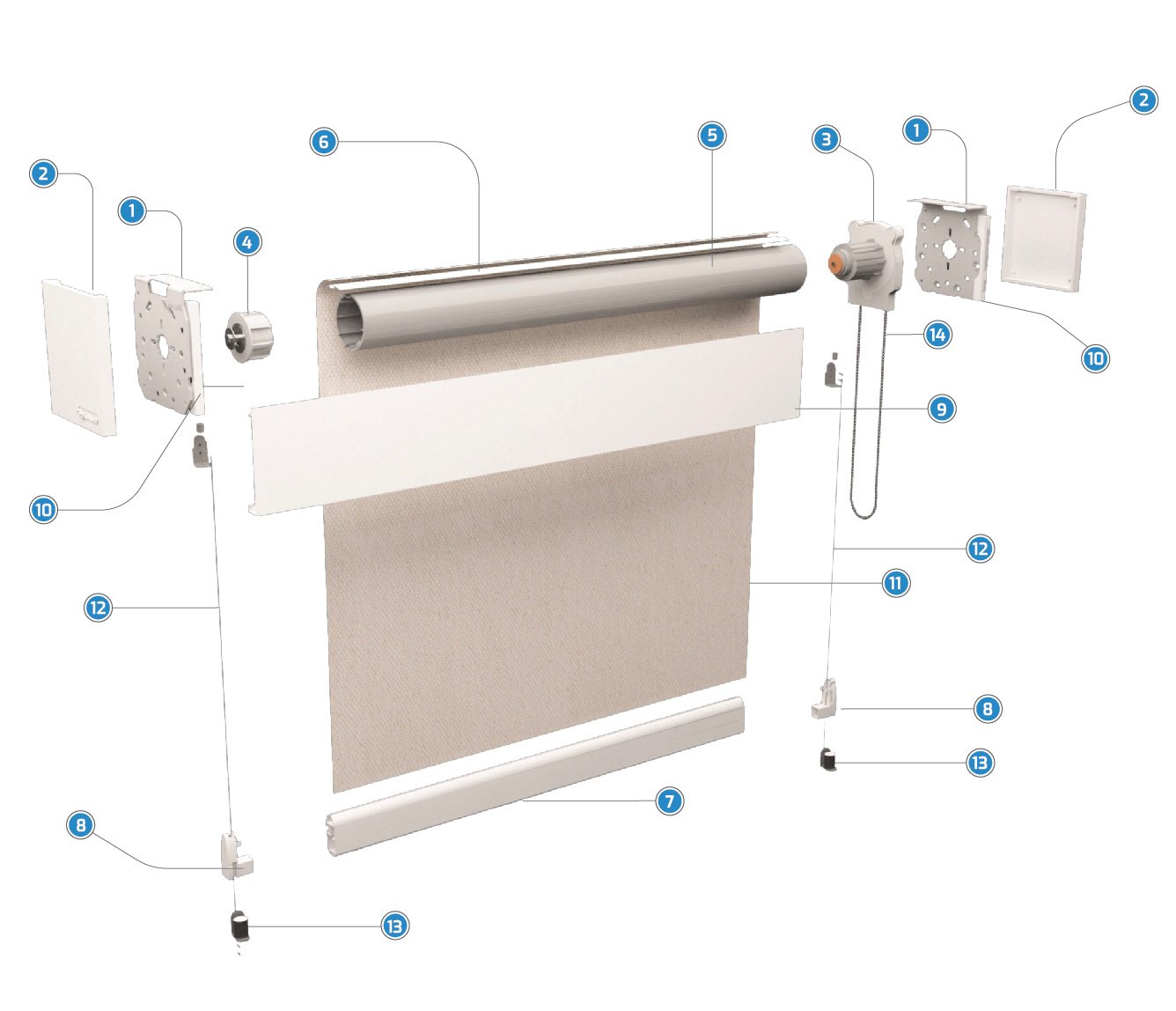

- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia Support
- 11. Fabric
- 12. Guide wire
- 13. Holder guide wire
- 14. Ball chain
Key Features
Double blind roller system
- 4:1 ratio chain mechanism for easy operation on large blind sizes
- The zipper channel/side guide stabilizes the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)

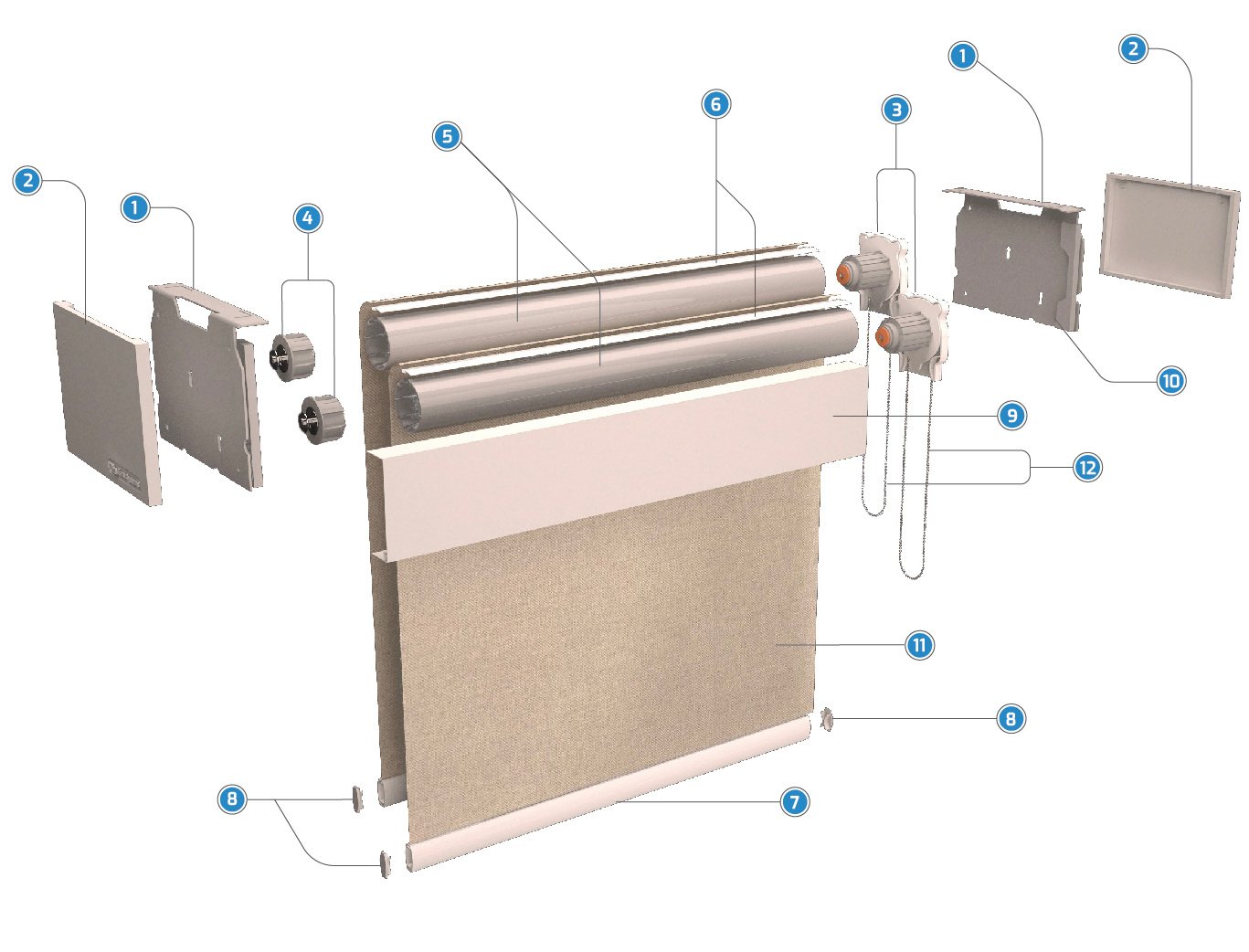

- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. Optional Fascia
- 9. Fascia support
- 10. Fabric
- 11. Side guide
- 12. Ball chain
Key Features
Roller system with zipper channel
- 4:1 ratio chain mechanism for easy operation on large blinds
- Up to 9 m2 multi band operation with a single mechanism (max fabrics weight 8 kg)
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)

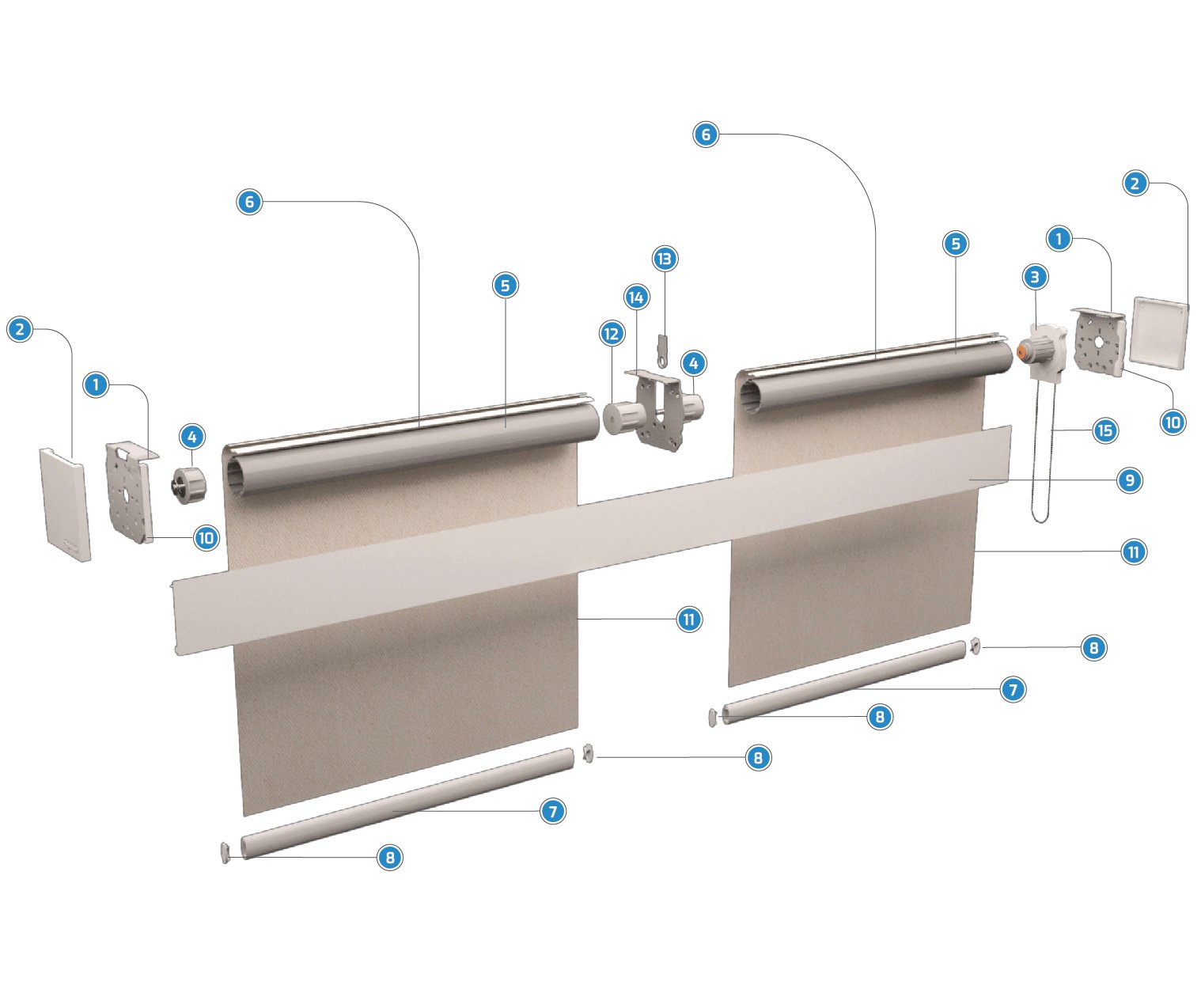

- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Center end plug
- 13. Bearing plug
- 14. Center support bracket
- 15. Ball chain
Key Features
Roller system with side guide
- 4:1 ratio chain mechanism for easy operation on large blinds
- Double blind with single bracket system designed to install both sunscreen & blackout blinds
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)

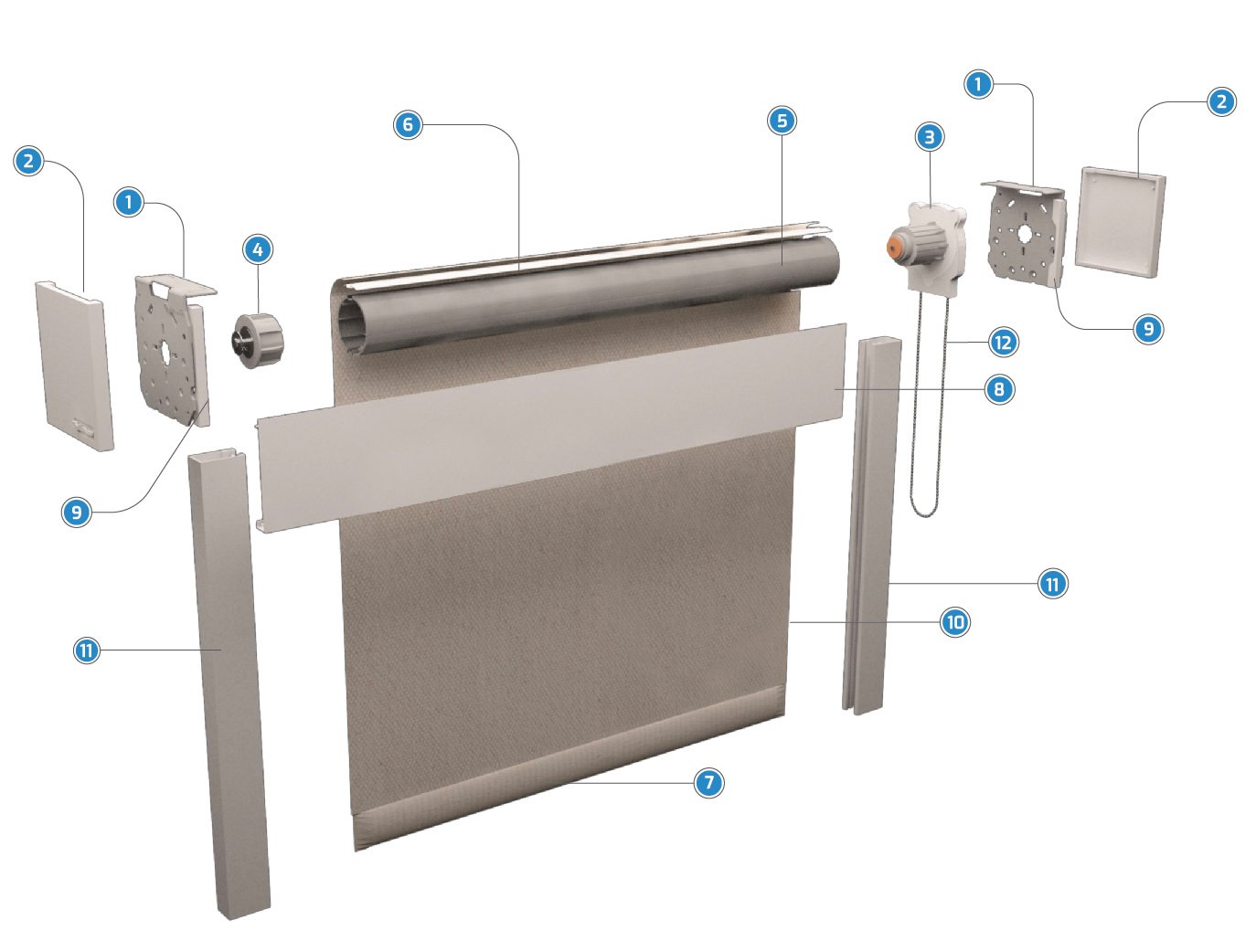

- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Ball Chain
Key Features
Roller system with side guide
- Room darkening or AV system
- The zipper channel stabilizes the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)

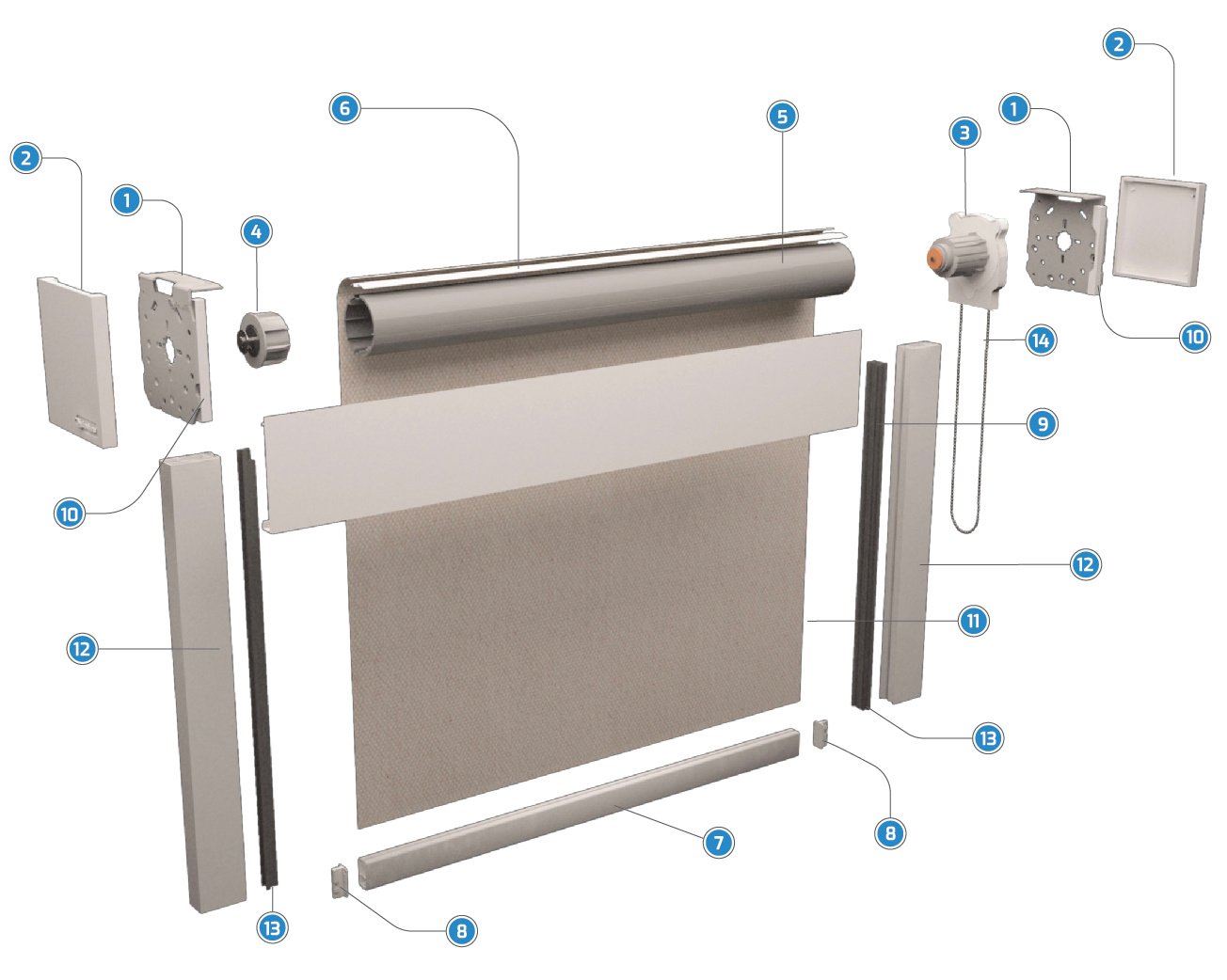

- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Zipper channel
- 13. Zipper
- 14. Ball chain
