Serena® 100
Serena® 100 - GW
Serena® 100 - MB
Serena® 100 - DB
Serena® 100 - ZC
Serena® 100 - SG
Serena® 170
Key Features

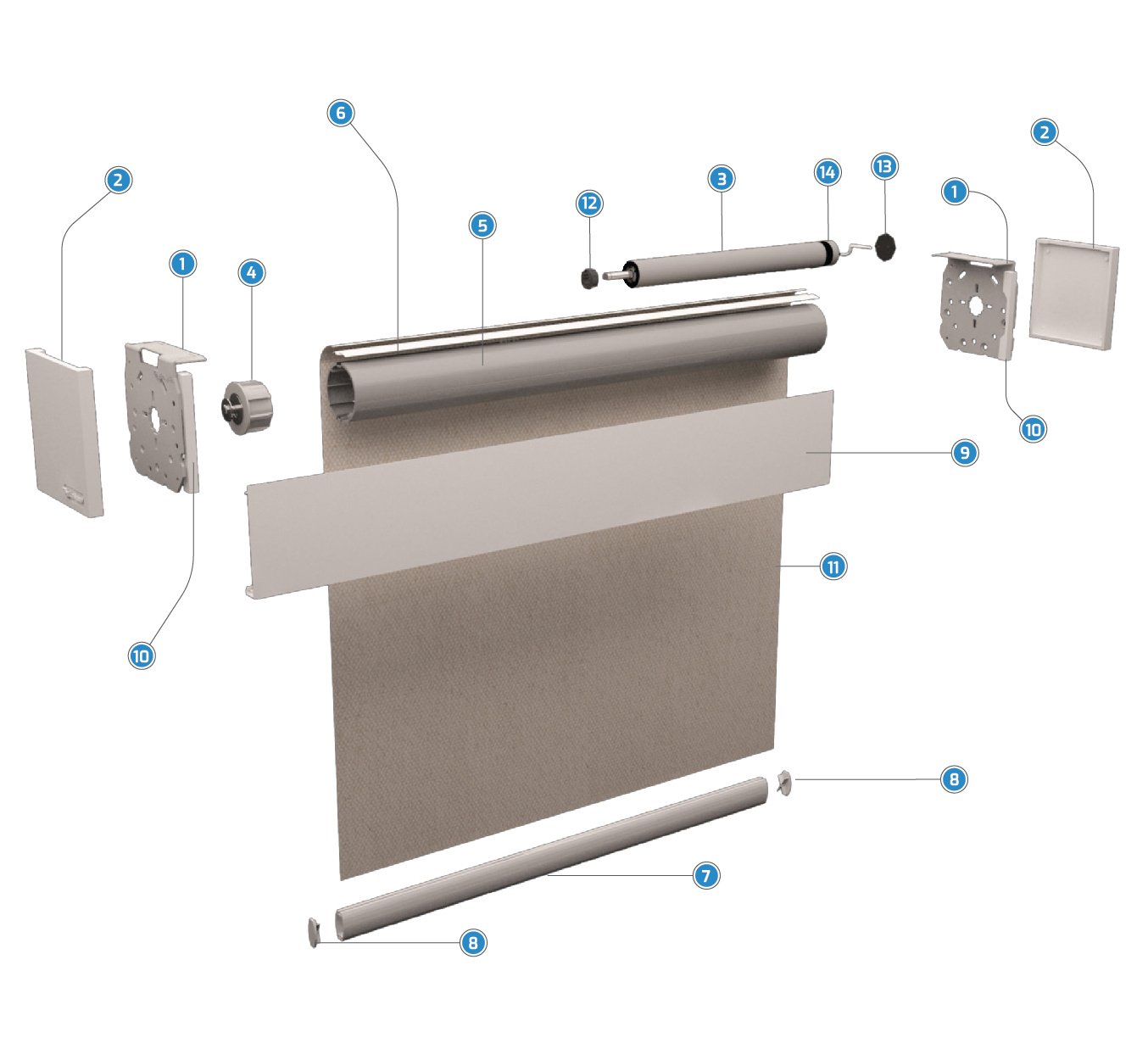

Motorized roller system
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
- 1. Mounting brackets
- 2. Bracket end cap
- 3. Motor
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Shaft adapter
- 13. Crown wheel
- 14. Motor plate
Key Features

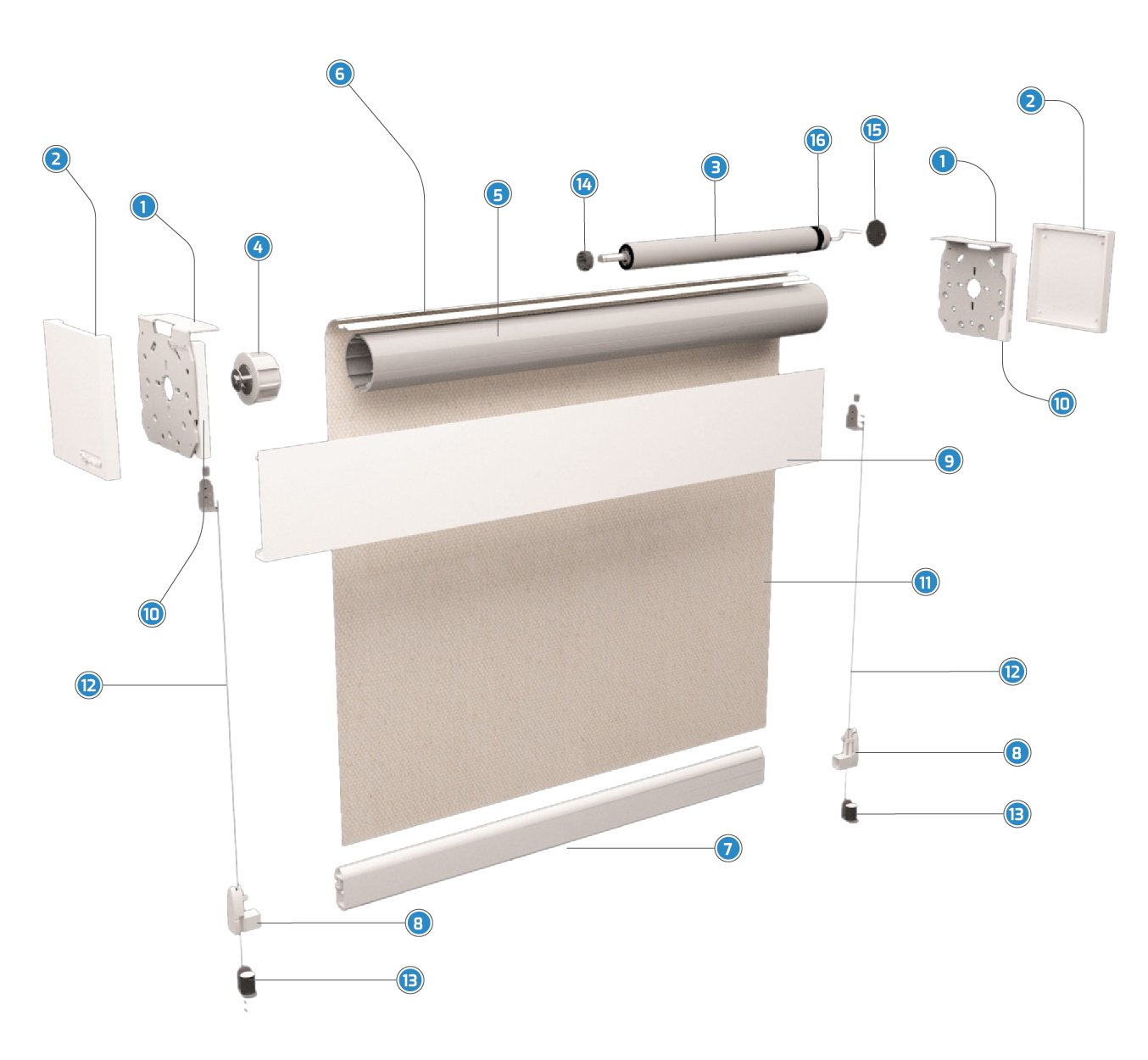

Motorized roller system with guide wire
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- The guide wire stabilizes the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
- 1. Mounting brackets
- 2. Bracket cover
- 3. Motor
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Guide wire
- 13. Holder guide wire
- 14. Shaft adapter
- 15. Crown wheel
- 16. Motor plate
Key Features

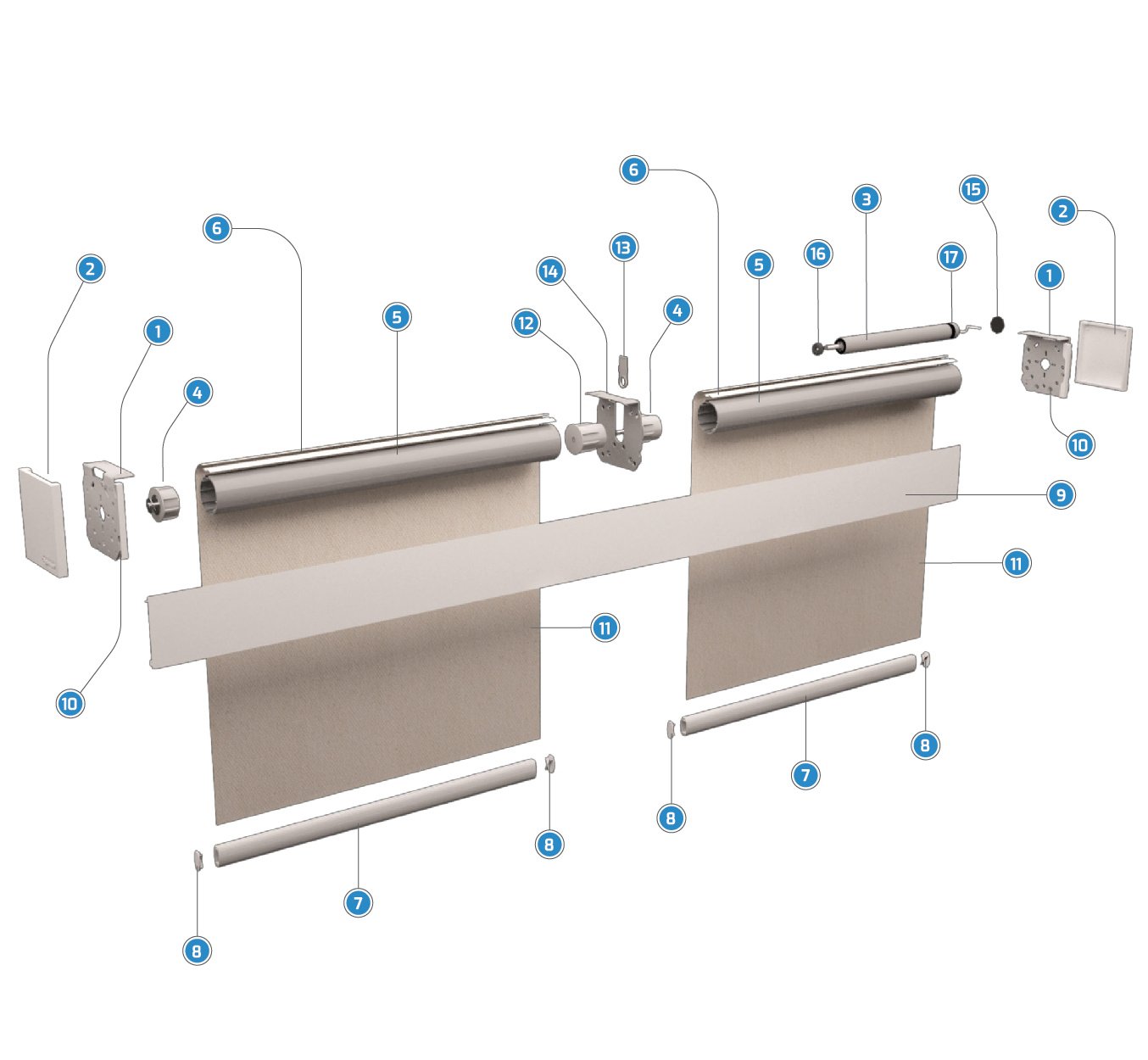

Multi band motorized roller system
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- Up to 20 m2 blind with a single motor system
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
- 1. Mounting brackets
- 2. Bracket cover
- 3. Motor
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Center end plug
- 13. Bearing plug
- 14. Center support bracket
- 15. Shaft adapter
- 16. Crown wheel
- 17. Motor plate
Key Features

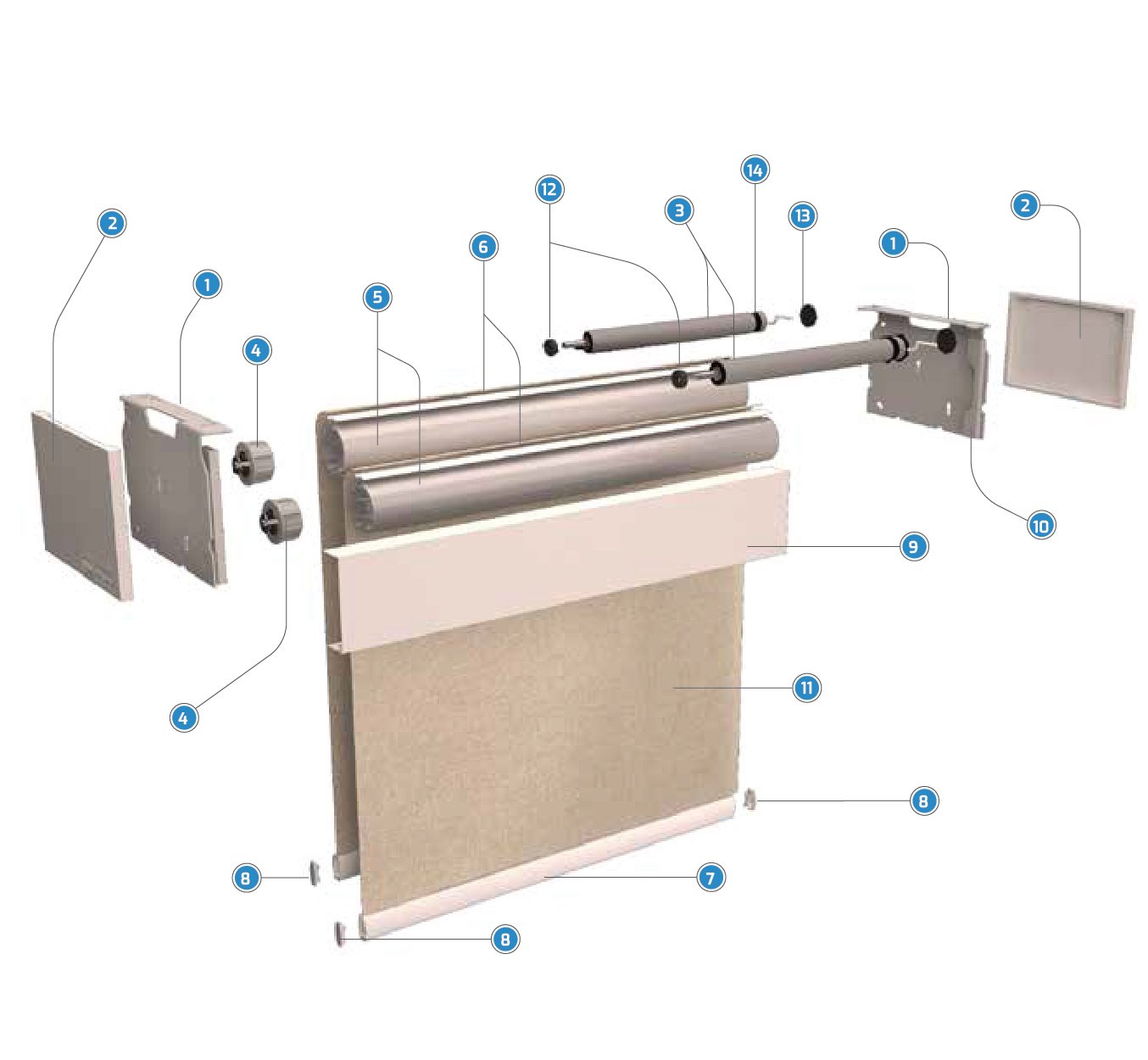

Double Blind Motorized Roller System
- Heavy duty VRS 230 VAC or SMI 230 VAC/24 VDC motor installed within the roller blind tube
- Double blind with single brackets to install both sunscreen & blackout blinds in a single window
- Up to 20 m2 blind with a single motor system
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
- 1. Mounting brackets
- 2. Bracket cover
- 3. Motor
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Shaft adapter
- 13. Crown wheel
- 14. Motor plate
Key Features

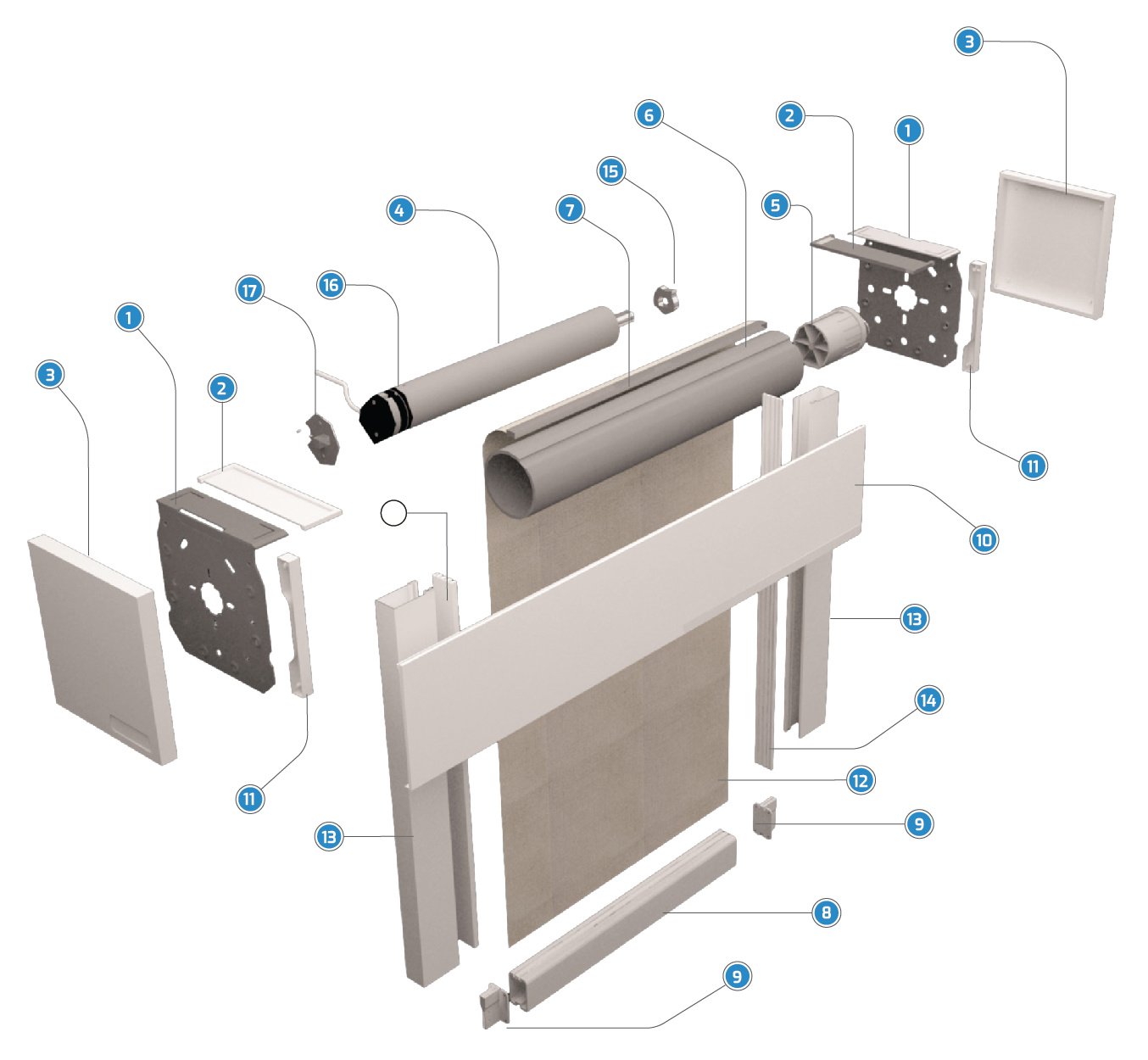

Motorized roller system with zipper channel
- RHeavy duty VRS 230 VAC or SMI 230 VAC / 24 VDC motor installed within the roller blind tube
- Up to 20 m² blind with a single motor system
- The zipper channel stabilizes the roller blind
- Built in auto stop mechanism for the upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, top or wall fixing options
- 1. Mounting brackets
- 2. Bracket end cap
- 3. Bracket cover
- 4. Motor
- 5. End plug
- 6. Tube
- 7. Mounting spline
- 8. Hem bar
- 9. End cap hem bar
- 10. Optional fascia
- 11. Fascia support
- 12. Fabric
- 13. Zipper channel
- 14. Zipper
- 15. Shaft adapter
- 16. Crown wheel
- 17. Motor plate
Key Features

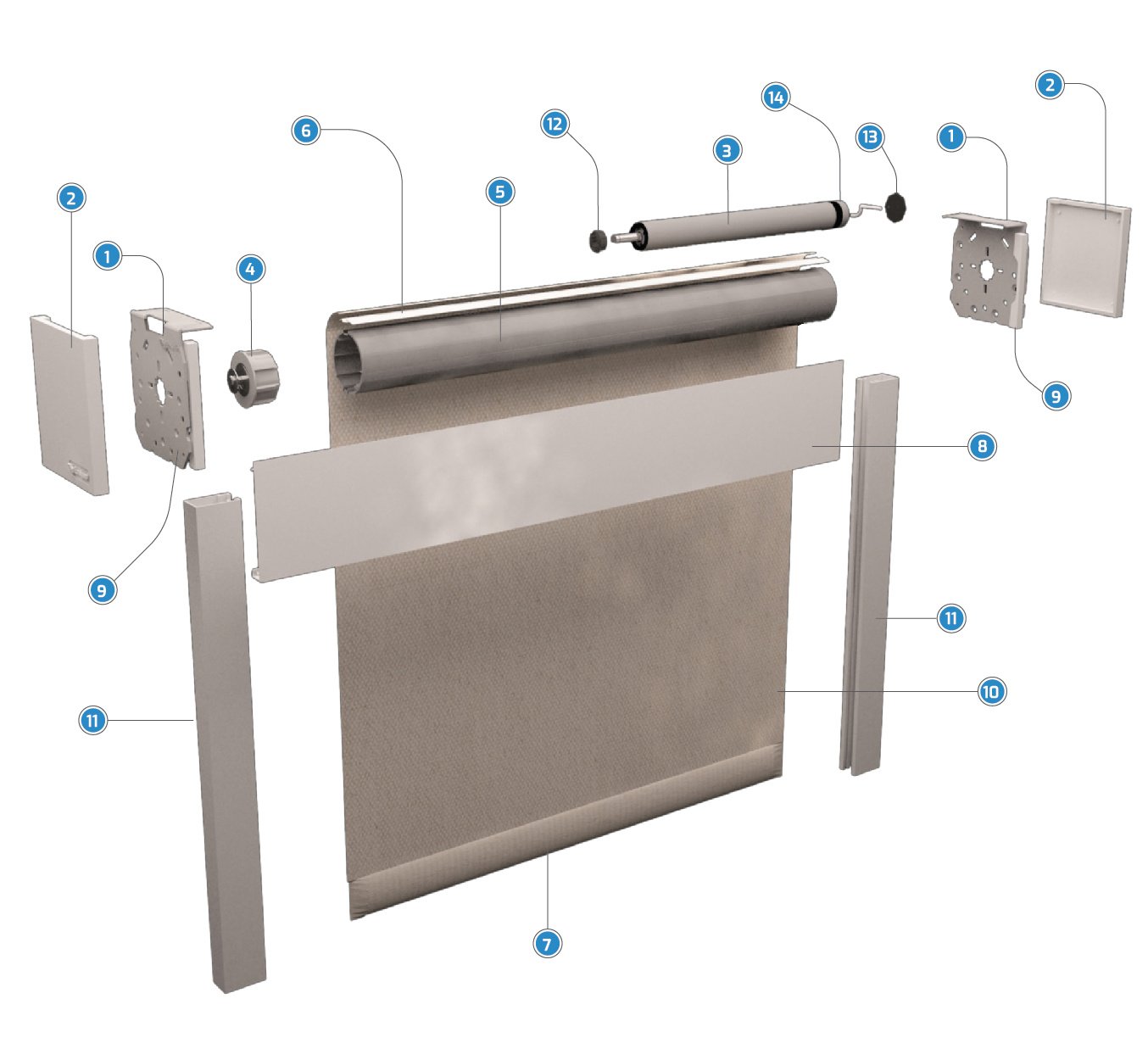

Motorized roller system with side guide wire
- Heavy duty VRS 230 VAC or SMI 230 VAC / 24 VDC motor installed within the roller blind tube
- Up to 20 m² blind with a single motor system
- The zipper channel stabilizes the roller blind
- Built in auto stop mechanism for the upper and lower limit setting
- Robust anti-deflection duty 47 mm diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as option
- Face, Top or wall fixing options
- 1. Mounting brackets
- 2. Bracket cover
- 3. Motor
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. Optional fascia
- 9. Fascia support
- 10. Fabric
- 11. Side guide
- 12. Shat adapter
- 13. Crown wheel
- 14. Motor plate
Key Features

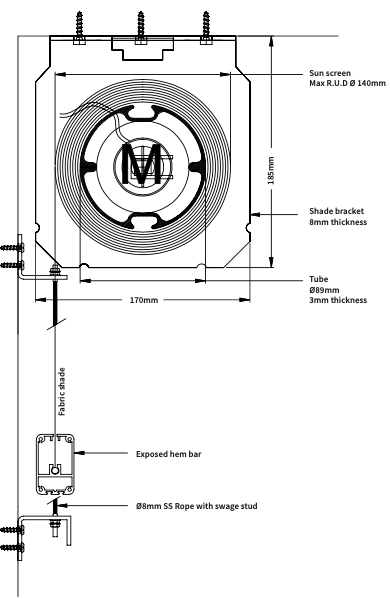

Motorized Monumental Roller Blind With Guide Wire
- Roller blind drive motor with torque range 50 -650 Nm as per project and blind requirement.
- The drive and idle-end assembly along with the center support systems are attached to an 8 mm steel universal mounting bracket 185 mm x 170 mm.
- Drive-end: 31 mm, idle-end: 18 mm
- Ceiling, wall or recess mounting.
- Precision winding shaft of extruded aluminum(T6), Ø90 mm and 4 mm thickness. Exposed hem bar (47 mm x 31 mm) powder coated white (RAL 9016).
- The hanging fabric is guided parallel to the window frame between two steel cords – also when the window is tilted. Slope angel max. 15°. Eyes on the closing profile of the hanging enclose the cord and guarantee safe guidance. Material (guide wire): Stainless steel Ø 8.0 mm.
- Depending on fabric thickness, max R.U.D is 140 mm.
- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. Optional fascia
- 9. Fascia support
- 10. Fabric
- 11. Side guide
- 12. Ball chain
