Key Features

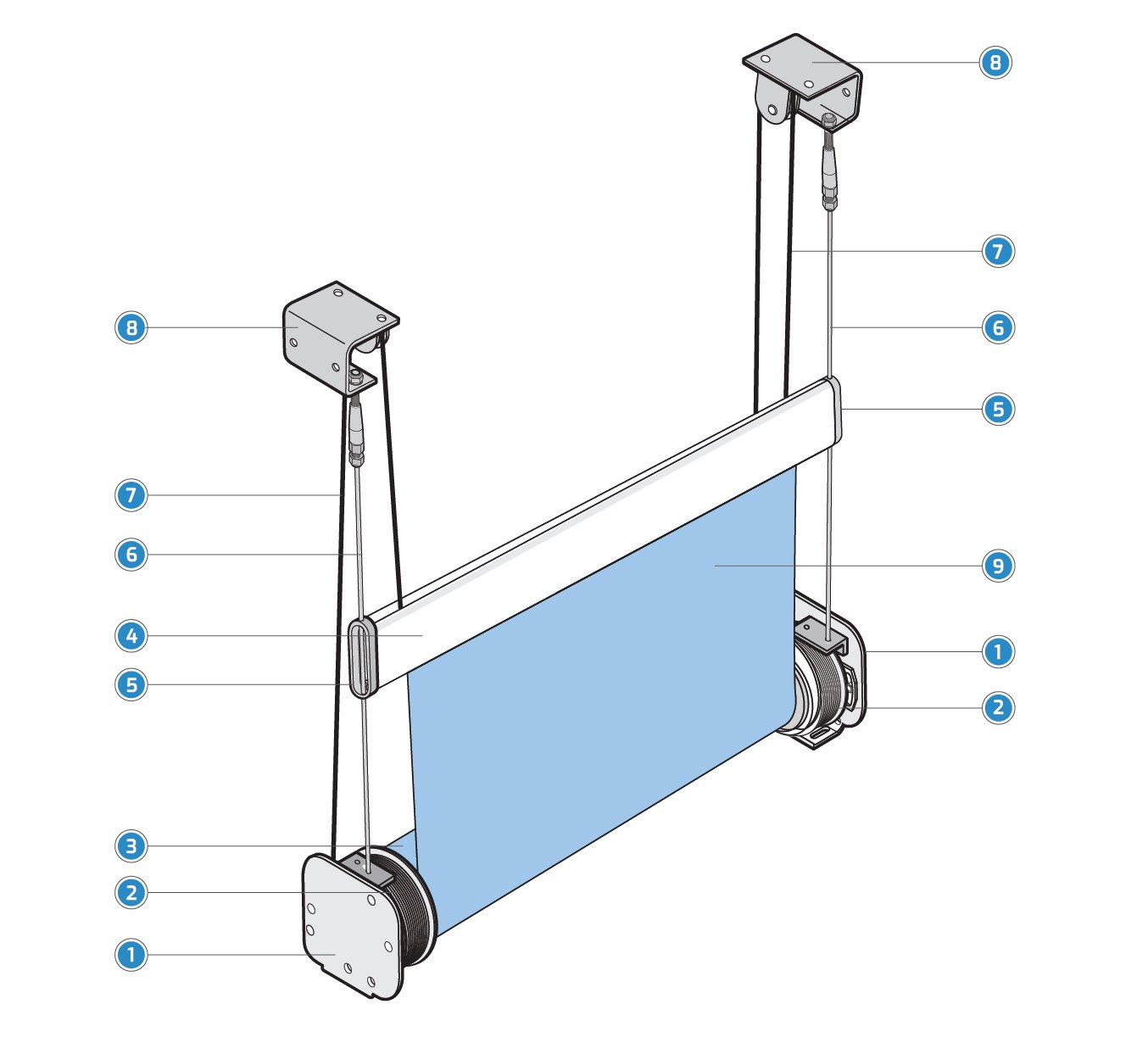

Wire Guided Tensioned Blind
- Automated, retractable sun shading system
- Horizontal and Sloping glazing applications
- Maximum daylight under dull conditions
- Reduced heat gains and glares
- Operation integration via simple stand alone remote control
to complex third party control integration and automation systems
- 1. Back Fix Roller Bracket Set
- 2. Tension Cable Spools
- 3. Ø85mm Fabric Roller Tube
- 4. Hem bar
- 5. Hem bar Endcap Guide
- 6. Hem bar Guide Cables
- 7. Tension Cables
- 8. Return Pulley Assembly
- 9. Shade Fabric
Key Features

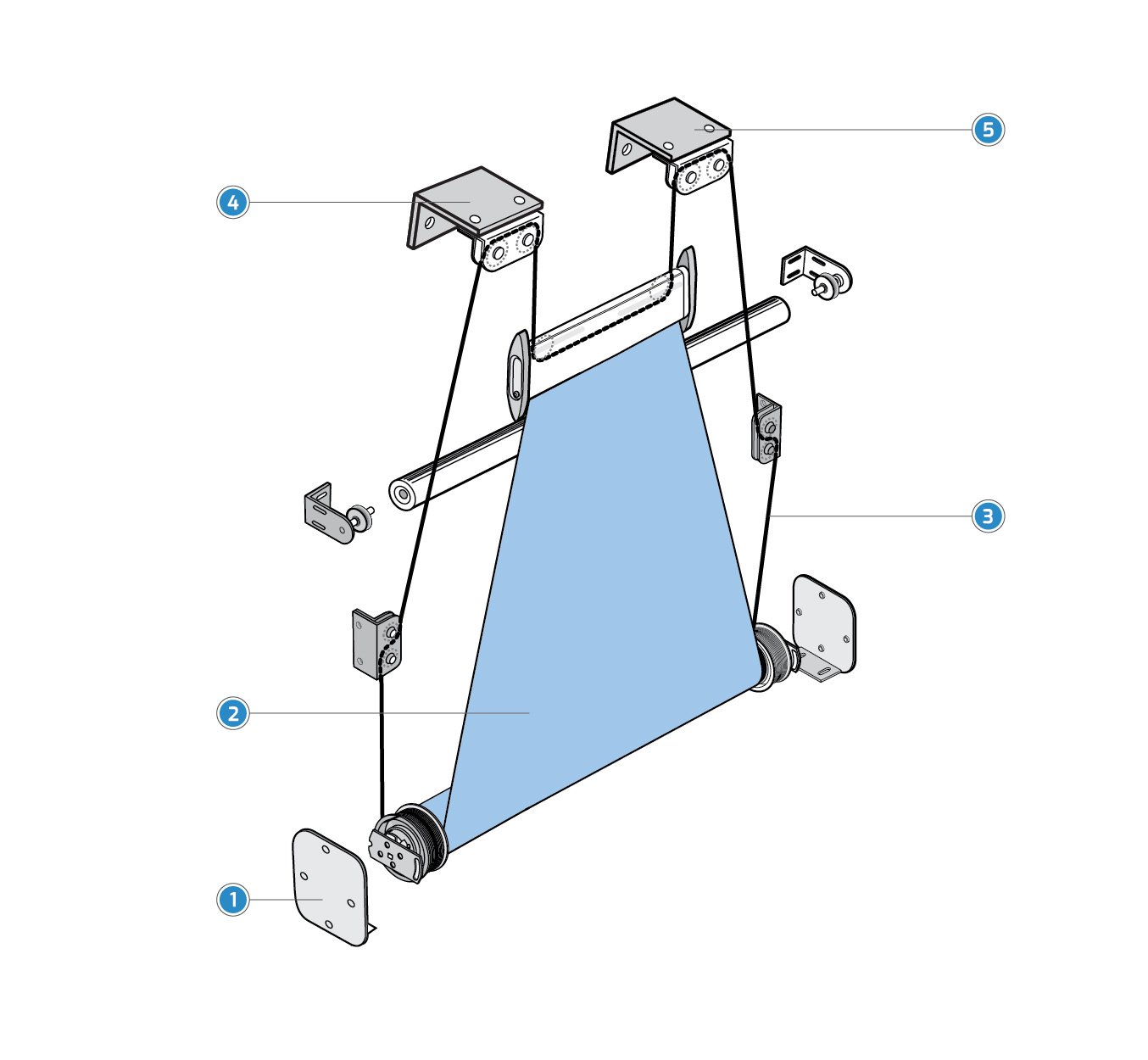

Roller system with guide wire
- 4:1 ratio chain mechanism for easy operation on large blinds
- The guide wire will stabilize the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 1.85 inch diameter tube
- Aesthetic end cap
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)
- 1. Bracket
- 2. Fabric
- 3. Tension Cable
- 4. Pulley Bracket (optional)
- 5. Relieving Roller
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Guide wire
- 13. Holder guide wire
- 14. Ball chain
Key Features

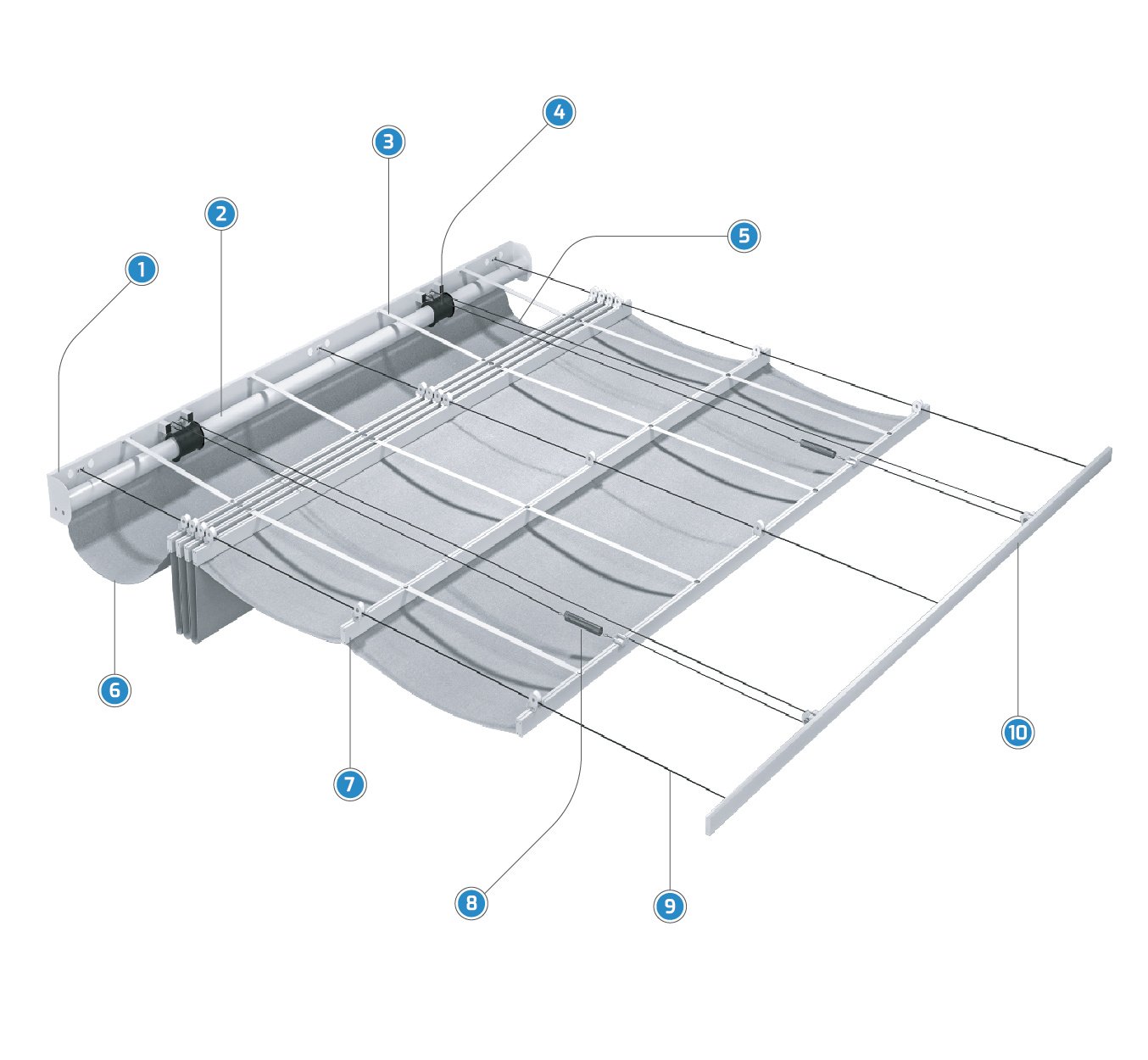

Large Horizontal Shading System
- Large window coverage in one complete system
- Fabric panels area coverage up to 100m2
- Large Roof, Large Terraces and Large Plaza applications
- 1. Main Frame
- 2. Assembly Tube
- 3. Fabric Tape Guide
- 4. Cable Drum
- 5. Retract Cables
- 6. Fabric
- 7. Fabric Locking Profile
- 8. Spring
- 9. Support Cables
- 10. Main Frame
- 11. Fabric
- 12. Center end plug
- 13. Bearing plug
- 14. Center support bracket
- 15. Ball chain
Key Features

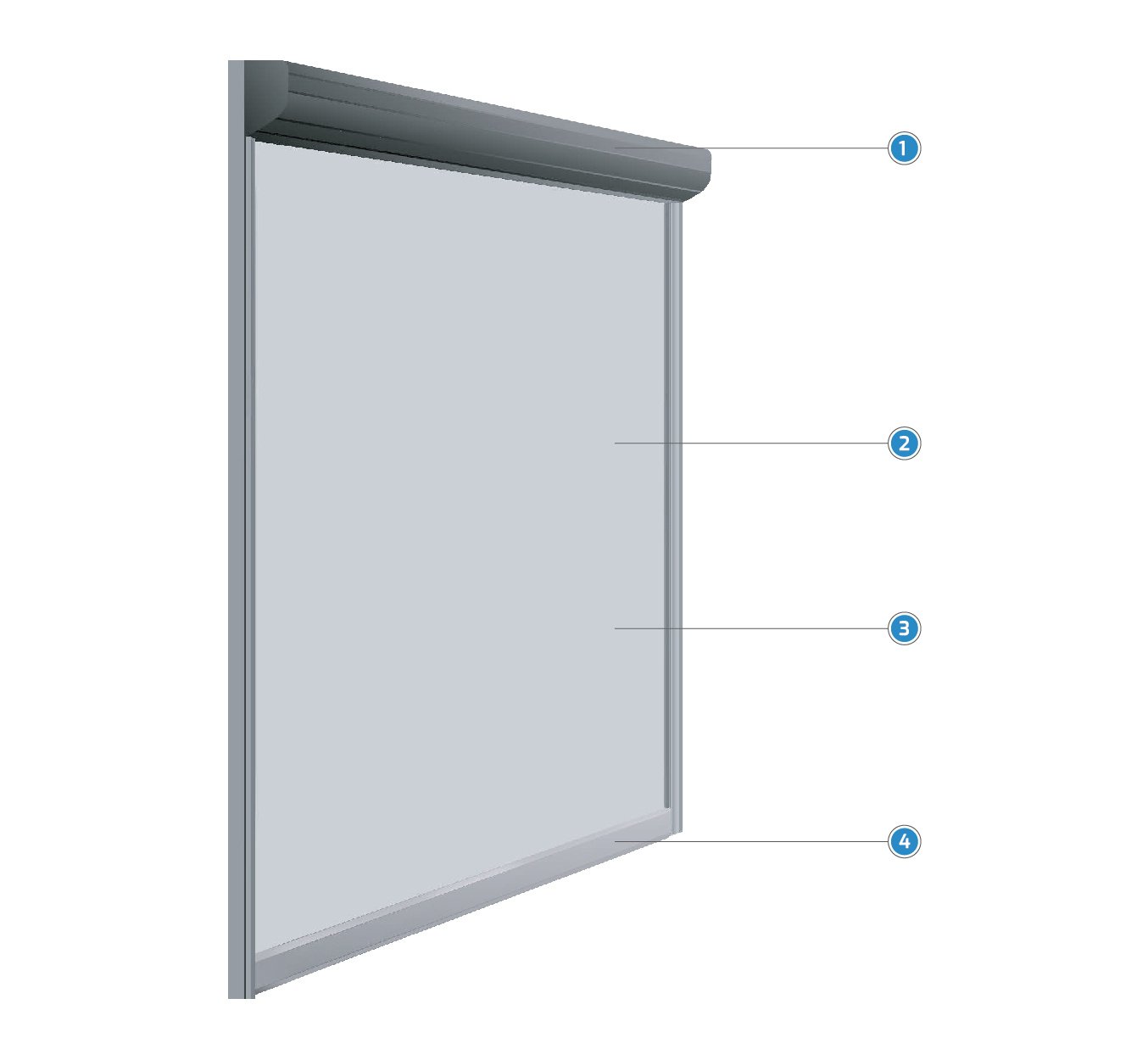

Sidelock fabric retention Mechanism System
- Rail-guided tensioned fabric system with sidelock fabric retention
- Internal or External application
- Horizontal and Sloping glazing applications
- Suitable for sun shading and blackout applications
- No light gaps or insect ingress
- Top-down or Bottom-up fabric deployment and installation
- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Ball chain
